The rapid expansion of the Electric Vehicle (EV) market and Battery Energy Storage Systems (BESS) has introduced a paramount technological challenge: advanced thermal management. At the heart of this concern lies thermal runaway, a phenomenon where a localized battery cell failure can trigger a devastating chain reaction. For design engineers and battery manufacturers, the integration of microporous insulation panels is not merely a technical choice; it is an essential safeguard to ensure safety, durability, and regulatory compliance.
The Challenge: Understanding Thermal Runaway
Thermal runaway is an uncontrolled exothermic reaction that propagates rapidly throughout battery modules. When a single cell experiences an internal short circuit, overcharge, or mechanical damage, its temperature spikes in seconds. Without an effective physical barrier, this extreme heat transfers to adjacent cells, initiating a domino effect that can compromise the structural integrity of the entire battery pack.
To mitigate this risk, thermal management systems must implement multi-level solutions. Protection cannot be limited solely to active cooling systems; it must include passive barriers capable of thermally isolating cells and modules, containing the heat and preventing propagation of thermal energy, and providing the critical time necessary to activate other safety measures.
The Solution: Microporous Insulation Technology
Microporous insulation panels, composed of fumed silica, opacifying agents, and heat-resistant fibers, represent the cutting edge in insulation materials. Unlike conventional insulation foams or ceramic fiber blankets, the microporous structure leverages physical principles at the nanometer scale to block heat transfer.
Why are they superior?
Extremely Low Thermal Conductivity: Thanks to their nanometer-sized pores, the air trapped inside cannot circulate or transport heat via convection, effectively eliminating thermal transfer by conduction. With thermal conductivity values as low as 0.038 W/m·K at a mean temperature of 800°C, they outperform any other material of their thickness.
Space Efficiency (Thin Profiles): In battery design, space is the most valuable resource. Our panels offer high-performance protection with minimal thickness (from 0.8 mm), allowing designers to maximize the pack’s energy density without sacrificing safety.
Unmatched Fire Resistance: They withstand peak temperatures up to 1200°C, acting as a physical fire wall between cells, containing the heat from a faulty cell, and protecting the surrounding environment.
Dielectric Properties: Beyond their thermal function, they act as electrical insulators, preventing secondary short circuits in high-voltage environments.
Integration in Battery Design
The versatility of these panels allows for strategic application at different levels of the thermal management system:

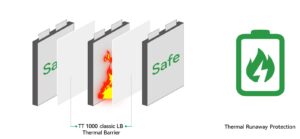

Cell-to-Cell Level: Interleaved between prismatic or pouch cells, they act as the first line of defense to prevent immediate propagation.
Module-to-Module Level: Used to compartmentalize modules within the pack, ensuring that a failure in one module does not affect the entire structure.
Pack Level: Protecting the outer casing to maintain integrity against external fires or internal thermal events.
The machinability of these panels allows them to be cut, die-cut, or shaped to adapt to complex geometries, integrating seamlessly into current automated battery assembly lines.
Frequently Asked Questions (FAQs)
Can microporous panels replace liquid cooling systems?
No. Microporous panels are a passive insulation solution. They complement active cooling systems. While the cooling system maintains optimal operating temperature, our panels act as a safety barrier during thermal events, preventing the propagation of thermal runaway.
2. How do they compare to aerogels?
Both offer excellent insulation. However, thanks to its unique formulation and manufacturing process, microporous insulation panels offer higher temperature resistance and better high-temperature insulation performance than aerogels – making them more suitable for demanding thermal runaway protection. In addition, they provide significant cost-effectiveness in large-scale applications without compromising performance.
Are microporous insulation panels safe to handle?Unicorn Insulations’ panels are designed under rigorous safety standards. They do not contain prohibited Refractory Ceramic Fibers (RCF). They are safe, chemically stable materials that are easy to handle during factory assembly.
What is the minimum thickness I can expect?
We currently offer solutions starting from 0.8 mm in thickness. We are constantly in development to offer even thinner versions that maintain these superior thermal properties.
Is it possible to customize sizes and shapes?
Absolutely. Customization is a core part of our service. We can tailor the panels to the exact dimensions of your battery modules, including die-cuts for wiring systems or sensors, facilitating a “plug-and-play” integration.
Maximize Your Battery Safety Today
Safety is not an optional component in electromobility; it is the foundation upon whichconsumer trust and market viability are built. If your goal is to design batteries that aredenser, more efficient, and, above all, safer, our engineering team is ready to collaborate with you.At Unicorn Insulations, we understand the thermal challenges of the new energy era. We contain isolated thermal events before they escalate.
Are you ready to integrate the best thermal protection on the market into your next design? Click HERE to contact our technical experts or request a sample of our microporous insulation panels today.
